| 힘: | 23000W | 전압: | 220V |
|---|---|---|---|
| 가스 유형: | NG 2000PA/LPG 2800PA | 수압: | 0.02Mpa-0.8Mpa |
| 제품 크기: | 530*330*143 mm | 패키지 크기: | 675*500*200 mm |
| 방수 등급: | IPX2 | 수온 편차: | ±1 Ｃ |
| 용량: | 12L/분 | 배기가스 종류: | 강제배기형 |
| 연결 크기: | G1/2" | 능률: | 84% 이상 |
| 정격 열 입력: | 24kW | 순 중량: | 9kg |
| 총 체중: | 10kg | ||

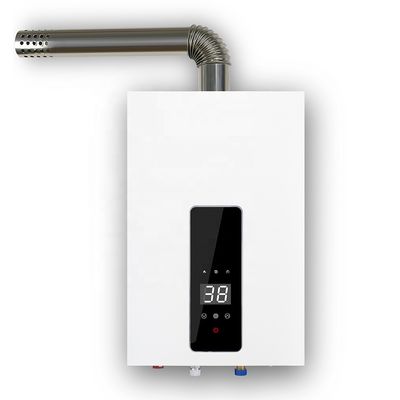

| 강조하다: | 12 Liter Gas Water Heater,0.02MPa-0.8MPa Flue Gas Water Heater,IPX2 Waterproof Tankless Water Heater |
||
| Capacity | 12L/Min | Exhaust Type | Forced Exhaust Type |
| Connection Size | G1/2" (Gas/Inlet/Outlet) | Efficiency | Over 84% |
| Gas Type | LPG / NG (Optional) | Product Size | 530*330*143 MM |
| Gas Pressure | LPG(2800Pa)/NG(2000Pa/1300Pa) | Packing Size | 675*500*200 MM |
| Working Water Pressure | 0.025-0.8 Mpa | N.W/G.W | 9/10 kg |
| Rated Heat Input | 24KW | Other Optional Size | 12L |
| Hot Water Supply L/Min △t 25°C | Rated Heat Load | Product Size(mm) | Packing Size(mm) | Loading Quantity 20GP/40HQ(PCS) |
|---|---|---|---|---|
| 10L/12L | 20KW/24KW | 530*330*143 | 675*500*200 | 410/980 |
| 14L/16L/18L | 28/32/36KW | 550*350*169 | 675*505*220 | 370/880 |
